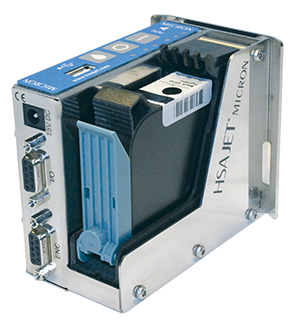

Printer HSAJET® MICRON MCHP1

Printer HSAJET® MICRON MCHP1 is based upon reliable HP TIJ 2.5 technology which delivers consistent, high-quality, fast printing and ease of use. Micron runs with 1 HP print cartridge allowing a print height of 12.7 mm.



Unique small controller and printer in one unit
- ideal for repeat printing job
The Micron is an 'out-of-the-box' unit. Place an ink cartridge in the stall, connect to power and print instantly by pushing a button.

Easy to integrate

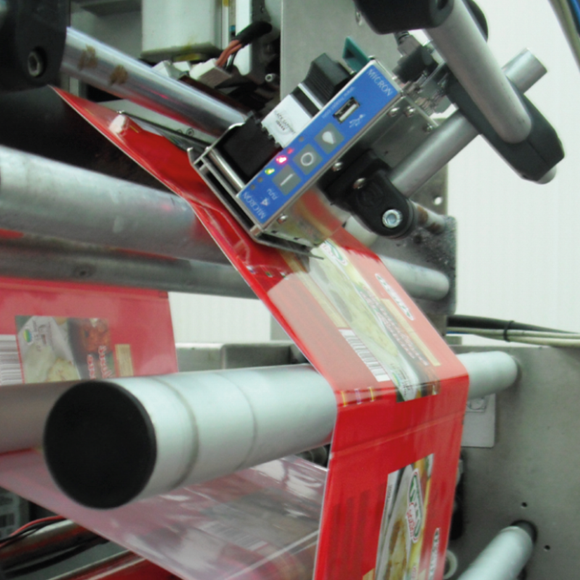

The printer takes up very little space. Not much more than the actual print cartridge itself. This makes it very easy to integrate in e.g. packing lines or on label dispensers. Print horizontally or simply change the position of the printer 90° for printing vertically/down.

Built-in sensor
The Micron printer has an internal sensor. If external sensor is required connect this directly to the printer.
The sensor distance is easily selected when designing the print job.





Technical details

  • Technology - HP TIJ 2.5
  • Print height - max. 12.7 mm (½") (1 cartridge)
  • Printheads - 1 pen integrated
  • Print distance - 0.5 - 2.5 mm (nozzle to print surface)
  • Voltage - 15 V (power supply included)
  • Memory - 1 print job in unit
  • Design in software - MiniDraw PC
  • Housing - Stainless steel
  • Dimensions - 107 x 86 x 87 mm
  • Weight - 0.53 kg



Features

  • Load ptint job from USB-key

Built your print job on a PC using the free MicroDraw sofwere delivered with the printer. Transfer to USB-key and connect to your Micron printer and you are ready to print. The leyout can be saved to the internal memory and the USB-key may be removed.

  • Ink cartridges

The wide range of inks for each application is available: spot colours, UV inks or fast drying inks. the printer allows parameter settings for each ink to reach the best performance in all situations.
